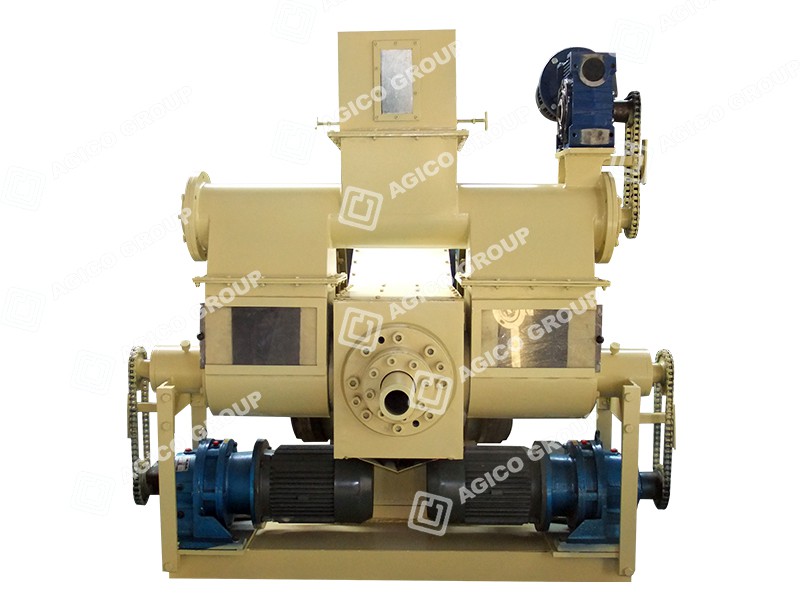

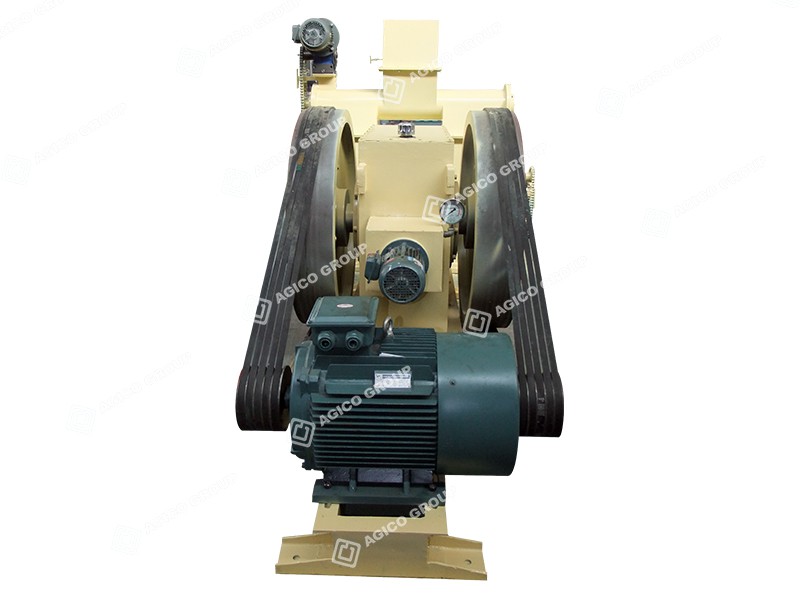

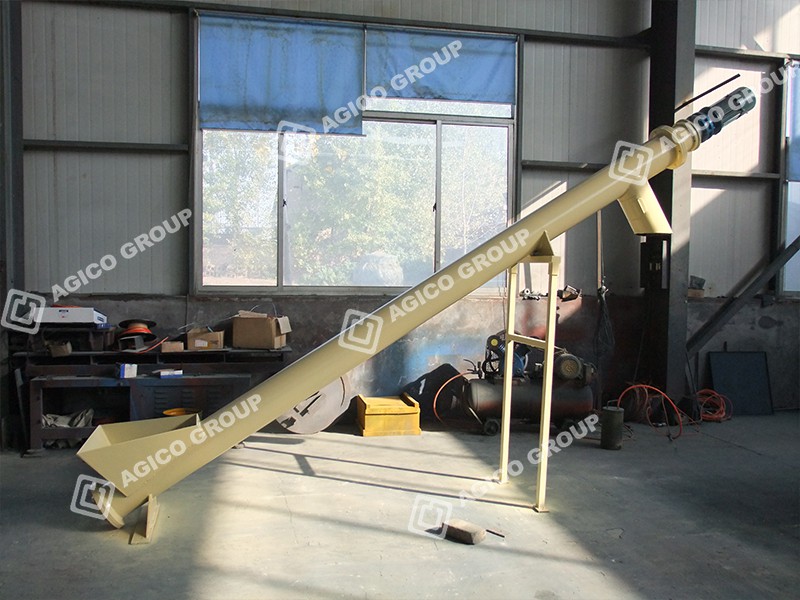

Mechanical Stamping Briquette Machine(Screw Conveyor)

Home > Products > Mechanical Stamping Biomass Briquetting Plant >

This machine can make both biomass pellets and large biomass briquettes:

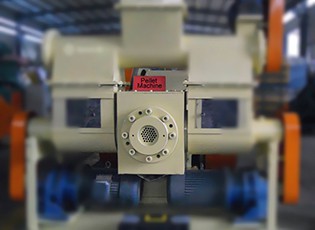

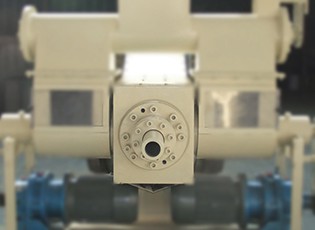

Equipped with pelletizing mould (Used to make pellets)	Equipped with briquetting mould (Used to press briquettes)

Details:

Model	Output (kg/h)	Main Engine Size (mm)	Weight (kg)	Total Power (kw)	Finished Fuel Rod’s Diameter (mm)
GC-MBP-500	500	320015001500	4000	35	φ50
GC-MBP-1000	1000	340020001800	7000	61.5	φ70/φ30/φ22/φ10/φ8

Production of Moulds with Different Pore Size

Mould (Pore Size)	8mm	10mm	22mm	30mm	70mm
Hole Number	61	37	7	4	1
capacity (kg) （Material is sawdust with moisture15%）	950 kg	900 kg	820 kg	880 kg	1200 kg

Photos of Finished Pellets / Briquettes


φ8mm Pellets / Sticks	φ10mm Pellets / Sticks	φ22mm Pellets / Sticks

φ70mm Briquettes (Rice Husk Made Rod)	Cotton Straw Made Rod	Sawdust Made Rod

Eucalyptus Skin Made Rod

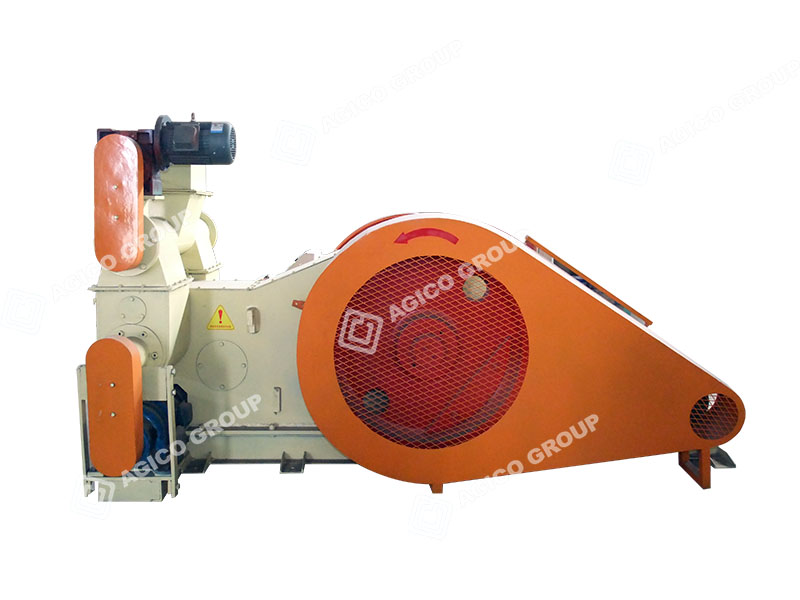

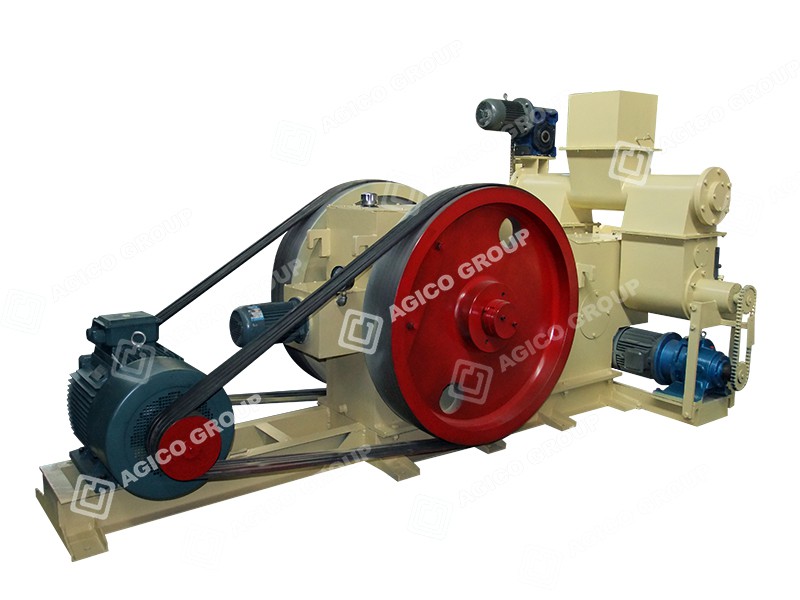

Fuel Briquette Maker

Features:

High degree of automation, easy to operate, reduce labor costs (automatic conveyor and automatic feeding are both available);
Low power consumption. You can use diesel engine if there is no available electric power.
The productivity of this mechanical stamping briquette maker machine can reach 1-1.2 ton/h ;
Good material compatible;

Various kinds of crop straw: cotton stalks, corn stalks, soybean straw, sorghum stalks, millet stalks, rice husks, peanut shells, etc.
Wood fiber materials: wood shavings, bagasse, pomace, pulp sludge, pasture, bark, bamboo shavings, sawdust, leather scraps, etc. All these above materials can be used to make fuel briquettes (fireplace fuel, boiler fuel, biomass power plant fuel, etc)

Electric heating function: automatic electric heating device, the humidity of the material is adjustable, no clogging problems.
Adopt high-speed, high-frequency stamping technique, the speed of the stamping reaches 300 times per minute. Ensure the stability of the molding.

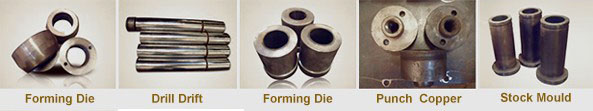

Fuel Briquetting Plant Parts

Easy to operate;
Long lifespan: the main parts of the briquette maker are made from special steel and wear-resistant material.
Low price (high performance ratio and cost-effective). The price of this machine takes the carrying capacity of the most users into account, especially farmers.

Basic Process of Biomass Briquetting:

Raw Material (moisture content below 10%) → Crushing → Feeding to fuel briquette maker (converter technique) → Briquetting or Molding → Packaging → Storage

For now, there are two main kinds of briquette maker machine: Abrasive disc extrusion briquette press and mechanical stamping briquette maker. Abrasive disc extrusion type can generally be divided into three kinds: Ring die design, flat plate design, and ring & flat die design. The diameter of briquettes produced by abrasive disc extrusion briquette maker is 30mm * 30mm, while the diameter of mechanical stamping briquette maker can reach 80mm.

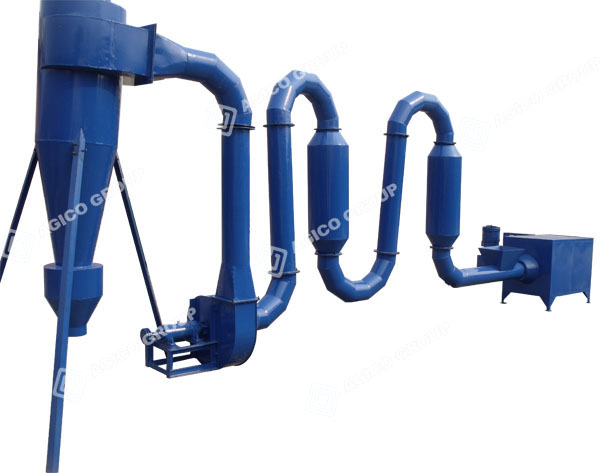

Moreover, the shape of mechanical stamping briquettes is diverse, round, square, hexagonal, perforated and other customized shapes. AGICO GROUP is a professional fuel briquette machine manufacturer supplying wood shavings briquette maker, biomass crusher, drier machine, etc. Contact us if you want further information on our machines or our company.

Environmental Parameters of Final Briquettes:

Density: 1.1-1.3g/cm ³;
Fuel value: 3,700 kcal~5000 kcal;
Sulfur dioxide emissions: 0.38% (lower than the national standard 1-3%);
Carbon dioxide emissions: 0.22% (far below the national standard);
Residue on ignition (ash): 3.6%;
Eco-friendly & recyclable: can be recycled as agricultural potash fertilizer.
