GC-FSD Crusher

Home > Products > Biomass Briquetting Plant > Crusher >

Details:

Model No.	GC-FSD400	GC-FSD600	GC-FSD800	GC-FSD1000
Cutting diameter (mm)	400	600	800	950
No. of cutting blades	4	4	6	4-6
Length of cutting blades(mm)	95	200	240	300
Feeding Diameter(mm)	150*150	200*230	250*300	400*500
Main shaft speed (r/min)	2600	2600	3500	2000
Power (kW)	11	15	30	45
Capacity(kg/h)	300-500	600-700	800-1200	1800-2000
Dimension (meter)	1.10.70.95	1.50.81.2	2.11.11.4	2.11.21.6
Weight (kg)	350	400	1000

Applications:

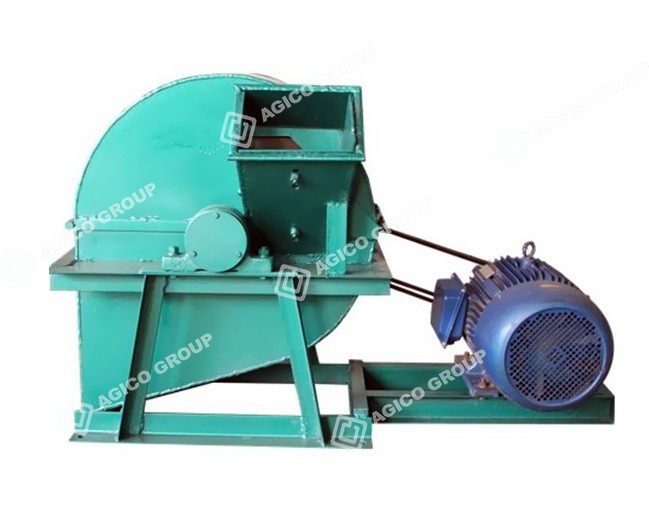

This mobile biomass crusher sets slicing and crushing as one. It can be used to crush twigs, branches, fibrous stalk (bamboo, grass, corn stalks, sorghum stalks) and other wooden materials which have a diameter under 20 cm.

Working principles:

GC-FSD biomass crusher adopts blades cutting and high-speed airflow impact technology. It is an integration of double crushing and screening. During the crushing, the rotor produces high-speed airflow. As the blade rotation, the material will be accelerated in the gas stream. Under repeated crushing, the crushing rate can be largely accelerated.

Due to its small size and high efficient, this crusher is an ideal choice for homemade briquette press. The color of the crusher can be changed if you want. We are a briquette press manufacturer and can offer a wide range of briquetting equipment and auxiliary equipment. Do hesitate to contact us for further information of this mobile crusher or other of our machines.
