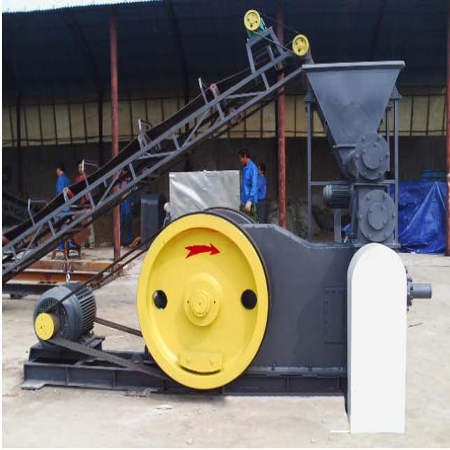

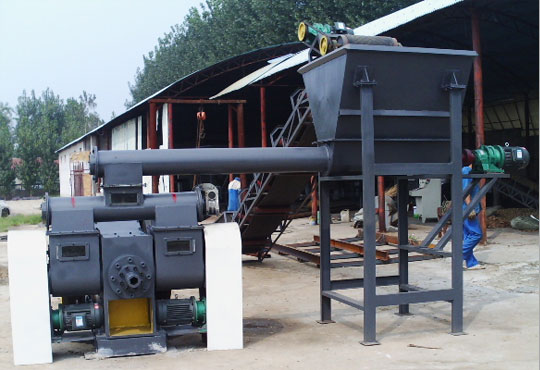

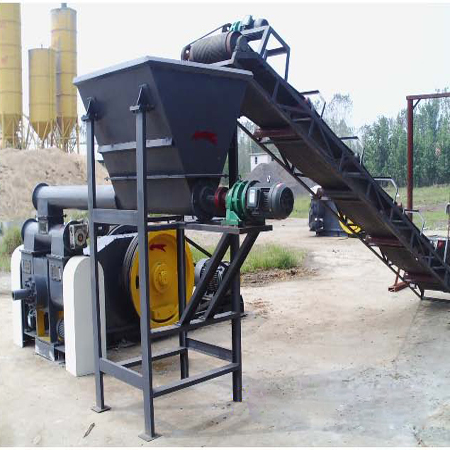

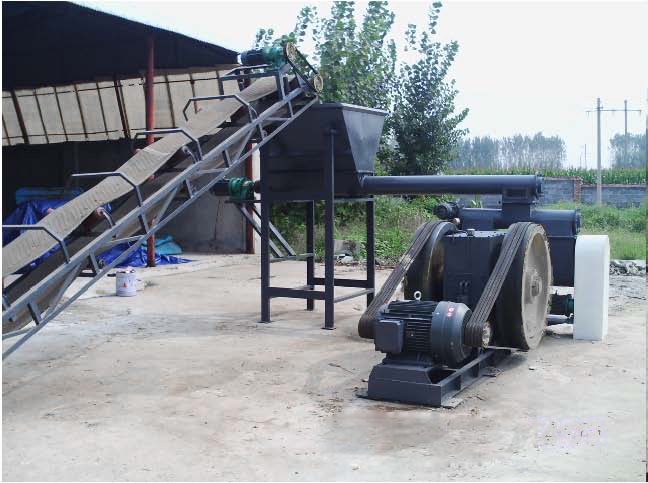

Biomass Straw Briquetting Press
The parameter is as follows:
1. Raw material: straw, sawdust, rice husk, seed shell, palm fiber, corn straw, alfalfa, and other biomass waste materials
2. Size of raw material: 5-50mm
3. Moisture of raw material: 8-25%
4. size of final product: 10-50mm
5. Density of final prduoct: 0.8-1.2g/cm3
6. Moisture of final product: <=12%
7. This plant includes: feeding conveyor, feeding hopper, briquetting press, control panel
THE PARAMETER IS AS FOLLOWS:
Model: GCY-1000
Power: 45KW, Total Power: 61KW
Output: 1T/H
Operater:4-5
Electric consumption: about 50KW/H /T (the crushing part in not included)
Overall dimension of the mainframe: 3500×1800×1700(mm); L×W×H
Ocupied Area: 80cubic meter(Proportion feeder and screw conveyer are included)
Total Weight: About 8000kg
Diameter of the briquette: 65-90mm
Dencity of the briquette: 0.8-1.2g/cm3

1) There is no need for a binder need during processing. Also no pollution occurs when it burns
2) The quantity of heat of final product is 500-1000Kcal higher than raw material
3) Can be used instead of firewood and liquefaction gas, with little investment.
4) Small cubage and easy to transport
![]() |
![]() |
![]() |
![]() |
